AC motors : control 4 speed
DC motors: control 10 speed

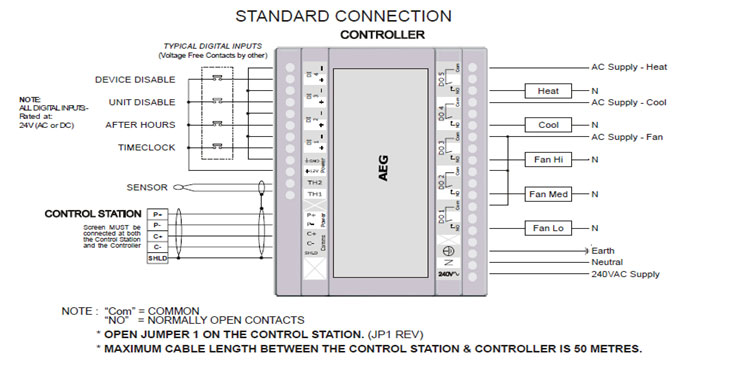

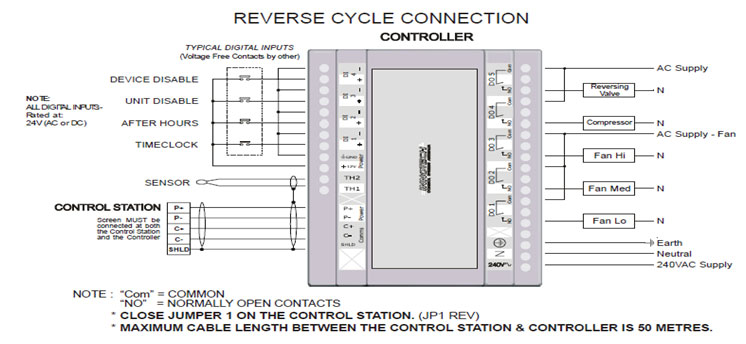

Control : ac system ,package, chiller,…

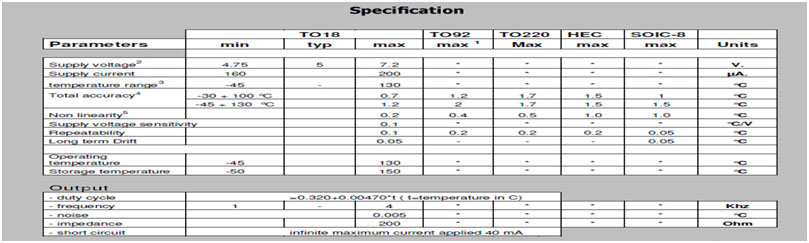

SMT16030 DIGITAL
TEMPERATURE SENSOR
Features
Absolute accuracy ± 0.7 °C
Linear output within 0.2 °C
Resolution better then 0.005 °C
Duty Cycle output
Calibrated on chip
TTL, CMOS compatible
Temperature range 175 °C (-45 to +130 °C)
Directly connectable to data input of microprocessor
Easy multiplexing of multiple sensors

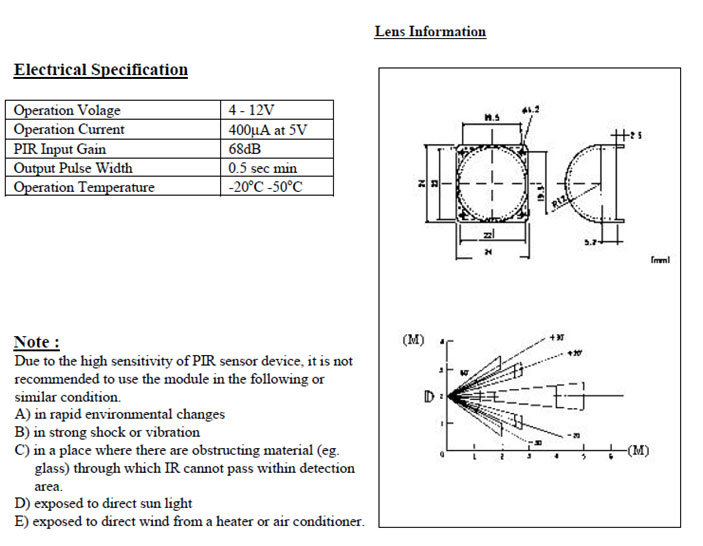

KC7783
PIR Sensor Module
KC7783 is a PYROELECTRIC sensor module which developed for human body detection. A PIR detector combined with a fresnel lens are mounted on a compact size PCB together with an analog IC, KC778B, and limited components to form the module. High level output of variable width is provided.

* PIR Detector
* Photocell for dusk/dawn
functionality
* Activate indoor or outdoor
lighting,
or sound a chime to alert you when
someone approaches
* Outdoor dual floodlights (not included)
* RF 433.92MHz

This unique product takes you above and beyond the capabilities of similar looking devices. In addition to turning on dual floodlights when the detector picks up motion, the can turn on up to 10 modules in or around your home. Security and convenience applications for this product are endless. Can be turned on or off from other X10 controllers.
